theMura motion and presence detectors for wall mounting (flush) with freely configurable buttons are perfect for energy-efficient lighting control, e.g. in individual offices, living spaces, corridors, stairways, cellars and toilets. A wide range of models offers you a suitable device for just about any application in the home or a functional building. They can also be used in the KNX building management system and with the KNX-based LUXORliving smart home system.
theMura 3-wire motion and presence detectors can be used in new builds as well as renovated properties and conversions. As a 2-wire motion detector in combination with a Theben ELPA staircase light timer switch they are above all used in renovated buildings and conversions. theMura KNX motion detectors and KNX presence detectors for wall mounting are the ideal device for the KNX home and building management system. The product range also includes a motion detector model for use in the KNX-based LUXORliving smart home system. Depending on the device, an additional relay with floating contact enables HVAC applications to be integrated. Furthermore, an external button can be connected to the theMura S180-101 presence detector.

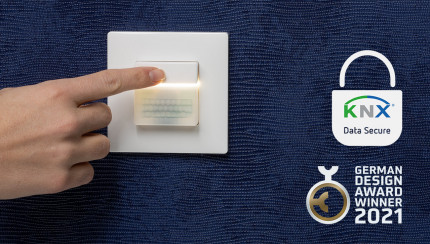

The KNX models of the theMura motion and presence detectors for wall mounting provide you with even greater flexibility thanks to day/night switching. The devices support KNX Data Secure and so are perfectly protected from data theft and tampering. Thanks to the integrated update tool, the KNX firmware can be updated retrospectively. This means that the devices are always up to date. The theMura P 180 KNX UP WH presence detector comes with six logic channels, an integrated temperature sensor, a push-button interface and a built-in noise sensor. This enables electrical installation costs to be significantly reduced.

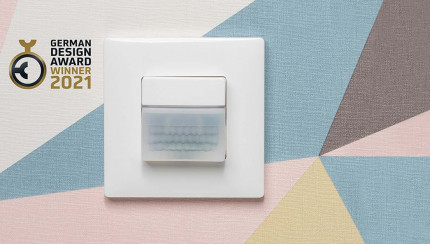

The flush-mounted theMura motion and presence detectors for wall mounting can be discreetly positioned on any wall thanks to their particularly sleek and attractive design and blend in perfectly with the room's interior.

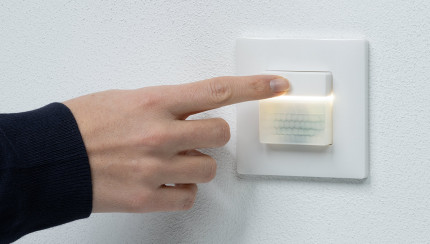

Lighting is not just controlled automatically with theMura. It can also be set according to personal preferences. By using the integrated button, the lighting can be switched on or off manually. If the button is not required, it can be simply deactivated.
On the theMura presence detector, the orientation light ensures greater safety in corridors and on staircases. After the main light has been switched off automatically, it remains activated for an adjustable time delay or permanently (depending on the brightness). The staircase light function prevents you from being left in the dark because someone turned off the light. With the teach-in function, the current light level value can be permanently saved. And when it makes sense to let the noise level determine when the light should be switched off, e.g. in toilets, the time delay can be specified using the acoustic function and the integrated microphone (depending on the device). This also enables reliable presence detection in rooms with partition walls.
The wall detector's large 14 x 17 m detection area can be flexibly extended with additional slave detectors. Electrical installers benefit from reduced device costs and shorter installation times.

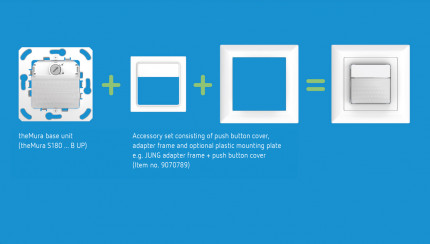

Theben theMura flush-mounted motion and presence detectors for wall mounting are suitable for universal use with the switch ranges of leading manufacturers such as Gira, Busch-Jaeger, Jung, Merten, Legrand, Berker, Feller and Niko. Accessory sets and a wide range of bezel frames make this possible. The scope of supply depends on the respective switch range.

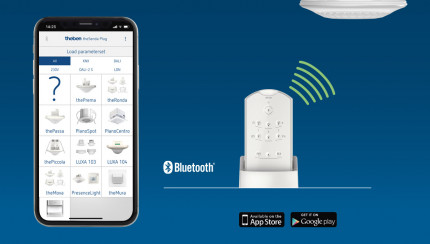

Programming theMura S180-101 and theMura P180 KNX wall-mounted detectors really is child's play. Ideally, you should use the theSenda B remote control together with the free theSenda Plug app. The parameters entered are sent by Bluetooth to the theSenda B remote control and from there transmitted by infrared to the detector. This means the devices can be configured and operated quickly, easily and safely. Do you prefer a classic approach to programming? Then simply use the integrated potentiometers to configure the device.
The theSenda Plug app for iOS and Android displays all detectors that can be operated via remote control. Flexible parameter setting means that parameter sets can be saved according to customer requirements, be filed in parameter libraries or be created externally and imported. This means that you can set identical parameters quickly, even in larger properties with many detectors.
