ELPA 540 APP BN Staircase Light Timer: Compact, decentralized solution for flush-mounting in tight spaces

Limited space in the flush-mounted box, tight deadlines on the construction site, and complex retrofits? The ELPA 540 APP BN offers electricians a compact and intelligent solution for staircase lighting control. The mini-format staircase light timer is installed directly in the flush-mount box, requires no central control, and can be conveniently configured via app.

5400008 1290x726px Installateurin
TITLE_EN_GB does not exist

Retrofitting staircase lighting control without major installation effort

When modernizing residential buildings, electricians often face the same challenges:

  • limited space in existing installations
  • tight schedules
  • high demands on comfort and energy efficiency

The ELPA 540 APP BN was developed specifically to meet these requirements. The compact staircase light timer brings modern lighting control functions directly into the flush-mounted box and reduces installation effort to a minimum.

ELPA 540 APP BN: The decentralized solution for modern staircase lighting control

ELPA 540 BN: Compact flush-mount solution with minimal effort

The app is used solely for configuration.

TITLE_EN_GB does not exist

Benefits for electricians

  • No additional wiring required

  • No extensive renovation work

  • Installation directly in the flush-mounted box

  • Compact size: Dimensions of just 32.7 × 26.6 × 9.6 mm

  • Quick commissioning

  • Configuration is transmitted to all ELPAs via the Bluetooth Mesh network

  • High flexibility for new construction and retrofitting

  • Silent switching without an audible click

All ELPAs at a glance
ELPA 540 APP BN
ELPA 540 APP BN
Article number 5400008
  • Stairwell light timer, electronic with multifunction
  • Compact flush-mount design for easy retrofitting into existing installations
  • Existing wiring can continue to be used
ELPA 1
ELPA 1
Article number 0010002
  • Staircase time switch, electronical
  • Zero-cross switching for relay-saving switching and high lamp loads
  • Multi-functional device with 10 available functions, set at the front of the device
ELPA 3
ELPA 3
Article number 0030002
  • Staircase time switch, electronical
  • Additional multi-voltage input electrically isolated for AC/DC 8...240 V, e.g. für intercoms
  • Switch-off pre-warning (two double flashes) in accordance with DIN 18015-2 to avoid sudden darkness
ELPA 6 plus
ELPA 6 plus
Article number 0060003
  • Staircase time switch, electronical
  • Zero-cross switching for relay-saving switching and high lamp loads
  • Multi-functional device with 10 available functions, set at the front of the device
ELPA 7
ELPA 7
Article number 0070002
  • Staircase time switch, electronical
  • Switch-off pre-warning to avoid sudden darkness
  • Zero-cross switching for relay-saving switching and high lamp loads
ELPA 8
ELPA 8
Article number 0080002
  • Staircase time switch, electro-mechcanical
  • 4 conductor with floor lighting connection
  • 3 conductor without floor lighting (no longer permitted for new systems)
ELPA 9
ELPA 9
Article number 0090001
  • Staircase time switch, electro-mechcanical
  • 3 conductor connection and floor lighting, but without secondary switching (no longer permitted for new systems)
  • Terminal layout same as ELPA 8

The ELPA 540 APP BN is suitable for both new construction and renovation and modernization projects. Especially when retrofitting stairwells, basements, or hallways, it enables convenient light control where the lights automatically turn off after a defined time. No costly renovation work required!

5400008 520x520px Anwendung Treppe

Continue using existing switches

A particular advantage for retrofitting: The existing installation can be used if a neutral wire is available. Even existing two-way connections can be used in conjunction with the ELPA 540 APP BN by rewiring them accordingly. And best of all: Switches do not need to be replaced with push to make switches!

This allows for quick and cost-effective modernizations without having to fundamentally alter the existing installation.

5400008 520x520px Anwendung Luefter

Additional benefit: Fan control in restroom areas

In addition to classic stairwell lighting control, the ELPA 540 APP BN is also suitable for retrofitting fan controls in restroom areas. Installation takes place directly behind switches or push buttons. Fans without integrated time control or automatic delay, in particular, benefit from this solution.

Possible operating modes:

  • Fan runs for the lighting duration
  • Fan runs for the lighting duration and additionally for a defined time delay
  • The time delay starts after the light is turned off
TITLE_EN_GB does not exist

light control
Simple light control with timer function and switch-off pre-warning via any switch or push button.

TITLE_EN_GB does not exist

Settings
The light can be switched on or off at any time; the switch-off pre-warning can be enabled or disabled.

TITLE_EN_GB does not exist

Countdown timer
Switch-on time adjustable up to 24 hours via push button.

TITLE_EN_GB does not exist

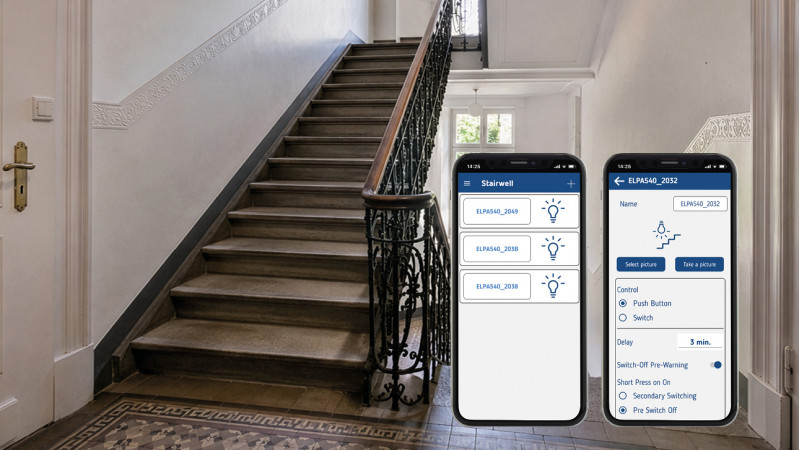

Configuration via app
The ELPA can be configured via the app in a tamper-proof manner. Communication via Bluetooth Mesh network.

TITLE_EN_GB does not exist

9 functions
Functions such as lighting duration, timer, and switch-off pre-warning can be activated via push buttons and switches.

TITLE_EN_GB does not exist

Silent
No audible "clicking" from the switching mechanism.

TITLE_EN_GB does not exist

Bluetooth Mesh for flexible building solutions

The ELPA 540 APP BN communicates via a Bluetooth Mesh network. Multiple devices can be connected to a shared network. The configuration of a connected device is automatically transferred to all other ELPA 540 APP BN units. A central control unit in the control cabinet is not required.

This offers significant advantages:

  • Scalable installation

  • High reliability

  • No central control required

  • Easy expansion of existing systems

Safety note: If an ELPA 540 APP BN is integrated into the mesh network, no other devices from the 540 series may be integrated into the network! The lighting settings in the stairwell are thus tamper-proof.

Tamper-proof configuration via app

Configuration is performed exclusively via the ELPA app. This allows important parameters such as lighting duration, switch-off pre-warning, or time delays to be securely set. Residents continue to operate the lighting via the existing switches or push buttons but do not have access to the settings.

If only a single ELPA 540 APP BN is installed, the device can also be operated with the factory settings. The app is then not strictly necessary.

5400008 1290x726px App Treppe en EN

The ELPA 540 APP BN is the ideal solution for electricians who want to implement staircase lighting controls quickly, cost-effectively, and without extensive modifications. Thanks to its compact design, Bluetooth Mesh communication, app-based configuration, and the ability to reuse existing switches, the Mini Staircase Light Timer is suitable for both new construction and renovation projects. It reduces installation effort while providing greater convenience and energy efficiency for operators and residents.
